The PortaBatch

The PortaBatch Versatile Loading Solution

For loading Cart-Away mixers at any location you should use the Cart-Away PortaBatch. It has all of the features of a fully automated Cart-Away batching system, but with added portability. With a simple push of a button, you can dispense 1-yard of concrete materials every 2-minutes. And with the self-contained power system and forklift pockets, you can move it anytime and go anywhere for batching.

PortaBatch Features

PortaBatch is fully self-contained, with an 11,000lb cement silo, 6-yard sand, and gravel hopper and a standard 31hp gasoline engine. The PortaBatch uses the time-tested Cart-Away TouchBatch operating system that allows you to select a batch size and cement ratios at the touch of a finger.

Quick Setup

You can be set-up and making concrete in less than an hour. Simply remove the PortaBatch from the truck, load in 11,000lbs of Portland cement from super-sacks, fill the 6-yard hopper with sand and gravel, back up a mixer, start the engine, type in your batch and push go. You can use the PortaBatch system for supporting a U-cart style delivery business, remote location batching, or job site mixer loading. If you are in a rental business, this machine will give the option of renting not only the trailers but also an entire on-site ready-mixed system.


  • Mixtures base upon volume of materials

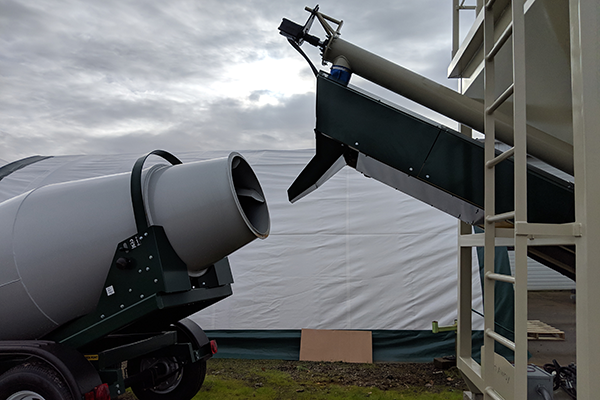

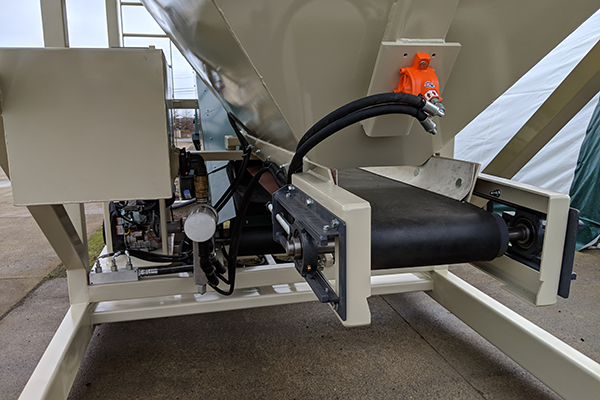

  • 29” by 13’ loading conveyor

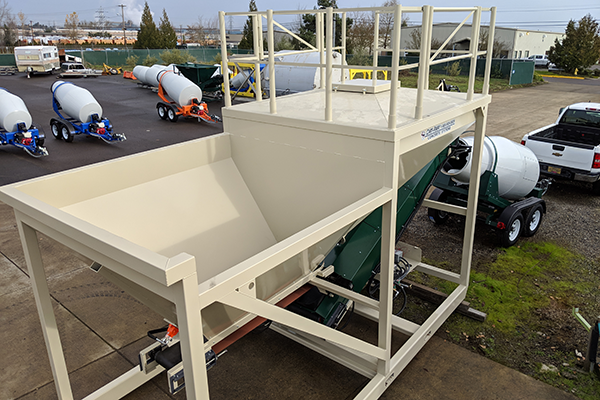

  • 6-yard aggregate storage hopper

  • 8’ 6” aggregate hopper load-over height

  • 11,000lb Cement storage silo

  • Super-sack accessible cement silo loading hatch

  • 10’ 6” silo hatch loading height

  • Silo access ladder

  • 42” Silo safety fencing

  • 31 hp Gasoline Engine

  • 5-gallon fuel tank

  • 7’ 8” by 21’ 6” footprint

  • 6,900 lbs empty weight

Add-ons Available for the Portable Batch Plant:

Get A Quote Today

The PortaBatch is the best of both worlds. You’ll love the flexibility and this batch plant brings and the volume of product produced! Call us now for a quote!
